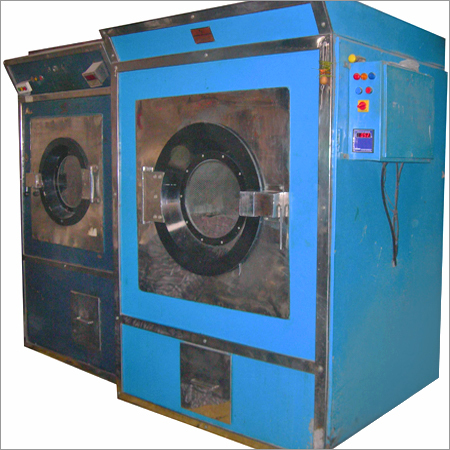

Dryer
Being one of the renowned organizations of this domain, we are engaged in manufacturing, supplying and exporting excellent quality Dryer. The offered array of equipment is fabricated by our engineers employing ultra-modern machines and technologies. To suit clients variegated demands, we are offering these dryers in various models, capacities and other specifications. Offered Dryer is widely appreciated for its low maintenance cost, longer functional life and energy efficiency.
| Model |
RTD-1 |
RTD-2 |
RTD-3 |
RTD-4 |
| Capacity (D.W.) |
15 kgs. |
25 kgs. |
40 kgs. |
75 kgs. |
| No. of PCs (400gm) |
30PCs |
50PCs | 80PCs | 150PCs |
| Inner Drum Dia. |
750 mm |
900 mm | 900 mm | 1220 mm |
| Inner Drum Length |
600 mm | 750 mm | 900 mm | 1000 mm |
| Inner Drum Speed |
24 RPM |
24 RPM | 24 RPM | 24 RPM |
| Drive Motor Exhaust fan Motor |
1 HP0.5HP |
1 HP1HP |
2 HP 1HP |
3 HP 2HP |
| Electicity Supply |
415V, 3 Phase, 50 c/s. A.C. Supply |
|||
| Steam Inlet |
20 mm |
20 mm | 25 mm | 25 mm |
| Steam Pressure |
5 Kg/cm |
5 Kg/cm | 5 Kg/cm | 5 Kg/cm |
| Condensate Outlet |
15 mm |
20 mm | 20 mm | 20 mm |
| Overall Length |
1150 mm | 1320 mm | 1500 mm | 1800 mm |
| Overall Width |
1000 mm | 1250 mm | 1350 mm | 1500 mm |
| Overall Height |
1500 mm | 1650 mm | 1800 mm | 2000 mm |
The technical data is approximate and can be changed without notice.
|
R/E DRYER |
|||||
|
Model |
RTD-5 |
RTD-6 |
|||
|
CAPACITY (KG) |
100Kgs. |
160kgs |
|||
|
INNER DRUM DIA |
1220MM |
1520MM |
|||
|
INNER DRUM LENGHT |
1120MM |
1320MM |
|||
| INNER DRUM SPEED | 24RPM | 24RPM | |||
|
DRIVE MOTOR |
3HP |
5HP |
|||
|
EXHAUST FAN MOTOR |
2HP |
2HPX2 |
|||
|
ELECTRICITY SUPPLY |
415V, 3PHASE, 50c/s. A.C.SUPPLY |
||||
|
STEAM PRESSURE |
5KG/CM² |
5KG/CM² |
|||
|
STEAM INLET |
25MM |
32MM |
|||
|
STEAM OUT-LET |
20MM |
20MM |
|||
|
OVERALL LENGHT |
1980MM |
2130MM |
|||
|
OVERALL WIDTH |
1500MM |
1700MM |
|||
|
OVERALL HIGHT |
1850MM |
2150MM |
|||
